Fire Retardant Coating Compounds

Ace Mastik Coating (VSCC000AB) Prevents the spread of fire

Ace Mastik is a water-based and solvent-free coating comprising of thermoplastic resins, flame-retardant chemicals, inorganic incombustible fibres, fillers and pigments. Ace Mastik is an ablative product which in case of fire, undergoes an endothermic reaction which reduce the burning rate and spread of fire. in addition to its other properties, Ace Mastik is also free of asbestos and halogen.

Special Features:

• FM approved, tested as per FM 3971 Standards
• Expands while it sets, ensuring a tight crack-free seal
• Non hygroscopic, i tdoes not retain moisture and is noteffected by humidity. It remains effective even after prolonged outdoor use
• No ageing effect. Coating lasts for the lifetime of cables
• Provides anti-rodent protection
• Highly flexibile.It can bend 6 time the diameter of cable and crack or peel
• No top coat required for outdooe application
• Ampacity-no de-rating of cable due to coating

PROPERTY	PRESENT VALUE
Density	1.25 to 1.40 gms/cm^3
Application Temperature	5 c to 50 с
Packaging	In Plastic Drums/Buckets of 20, 30 & 60 kgs
Storage Temperature	Max 50c, must be protected from freezing
PH Value	6 to 8
Recommended Thickness	1.6 Minimum
Thinning	By water
LO.I	80%
Toxicity	Non-Toxic
Touch Dry	4-6 hours

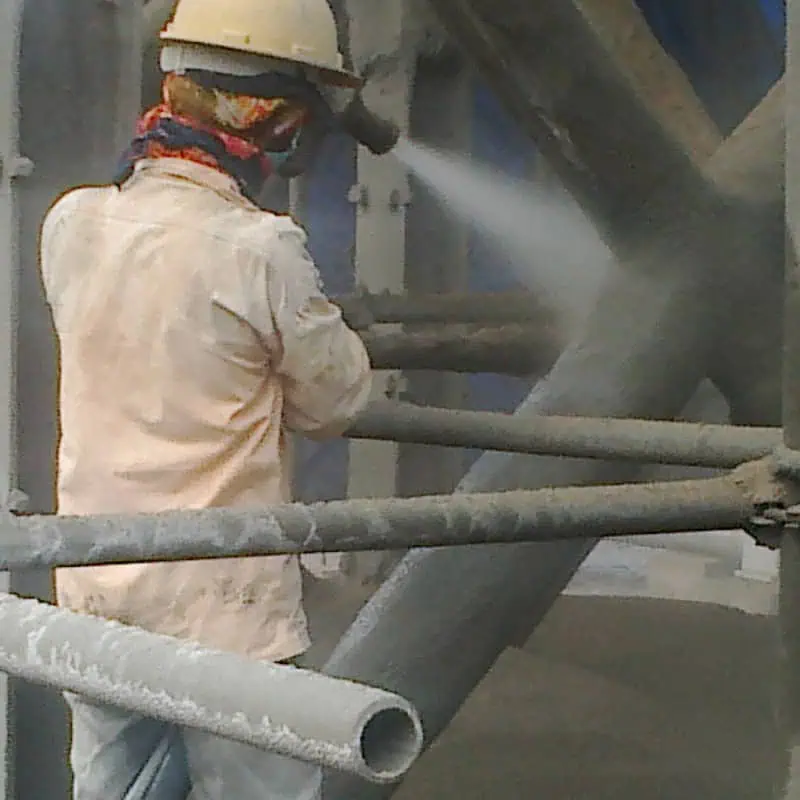

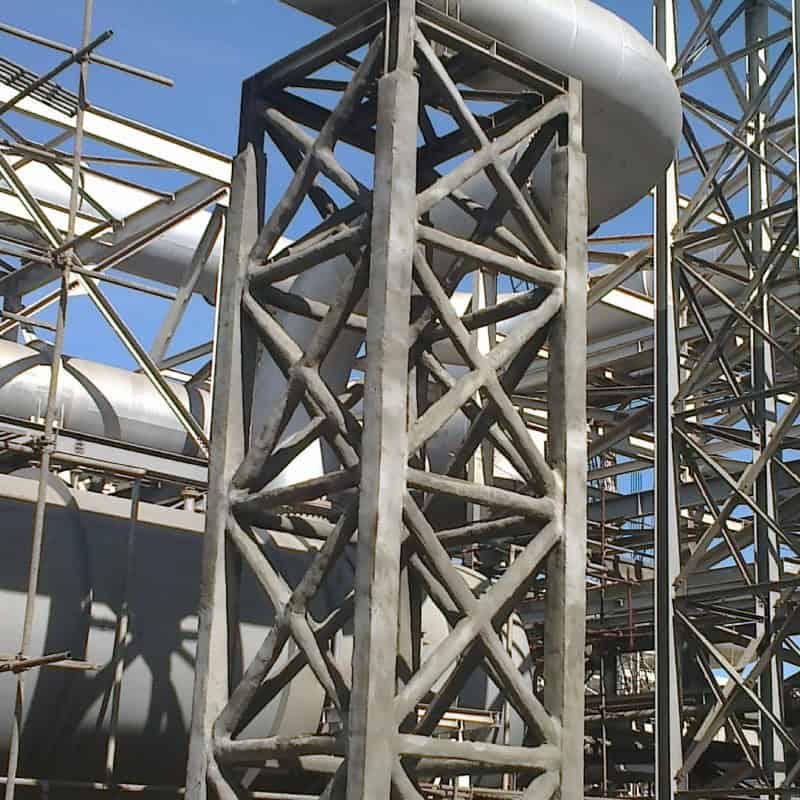

VS Steel Coating VM (VSSC120VM) PROTECTS STEEL STRUCTURE

VS Steel Master VM provides fire protection to structural steel. It imparts fire resistance and heat insulation to prevent collapse of the steel structure due to fire. The phenomenon of possible collapse of steel structures in fire conditions is based on the fact that steel loses nearly 50% of its mechanical strength at a temperature of 550 °C. When all the exposed surface of structural steel is coated using VS Steel Master VM, a fire rating of up to two hours is possible.

Special Features:

• It has excellent adhesion to most structural steel surfaces and the conventional primer and paint systems in commercial and industrial units
• Is paintable with primer
• Is easy to apply either during prefabrication or after completion of structure
• Modifications to the structure are feasible with little maintenance efforts
• It can withstand conditions like: weathering effects, aging, vibrations, temperature variations & water logging
• Is non toxic and does not contain any harmful substances like asbestos or halogens
• Does not evolve halogen when exposed to fire
• Ecologically harmless
• The system is not prone to attacks by vermin, termite or rodents

PROPERTY	PRESENT VALUE
Colour & Appearance Dry Bulk	Grey, Granular Powder Mix Plaster Compound
Density Dry Bulk	550 +/-50 kg/m
Density pH System	Non Flammable / Non Combustible
Reinforcement Surface	9 to 12.5
Preparation Adhesion	OdorCorrosion Resistant Coated Weld Mesh 16 G X %" Pitch less
Base	Sa 2½ (bright, White/grey Base Metal) Two Component Zinc Rich Epoxy Primer 50 Microns DFT Minimum

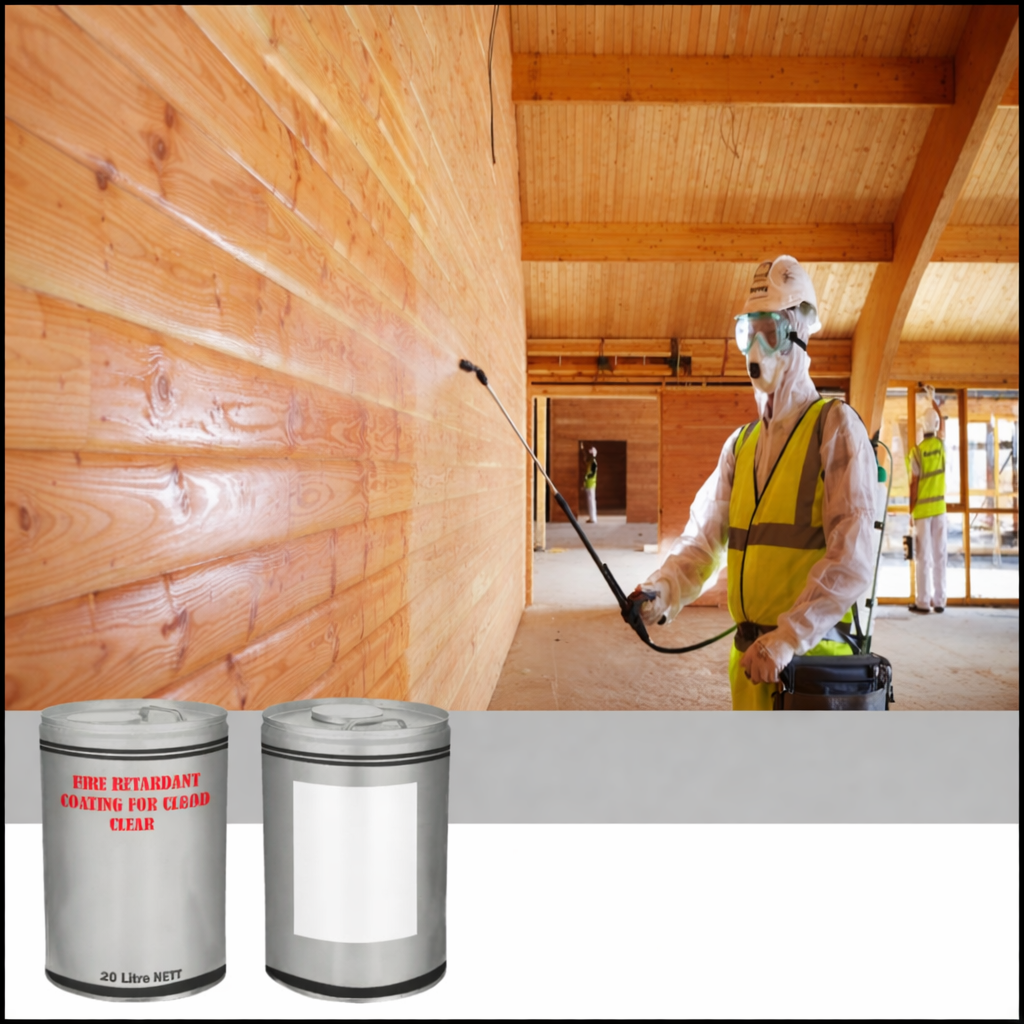

VS Coating VM & VS FR Fabric Coating (VSFC00000)

VS FR Fabric Coating is a water based clear solution to dip and dry the fabric to make it fire retardant. The necessary original properties of the fabric like its 'looks', 'colours' and 'touch_feel' are not sacrificed at the cost of fire retardancy. The product can be used for other cellulosic absorbent fibres like jute fabric, coir fabric or other similar woven cellulosic water absorbent textile materials. It suits all types of cotton fibre textiles and weaving patterns. The coating converts the fabric into black char, but does not allow it to catch flames. The coating is washable to assist cleaning of the fabric whenever required and can be recoated to make the fabric fire retardant again by dipping in solution and drying.

Special Features:

• Is halogen free
• Easy to use and apply
• Light weight
• Flexible to moderate shocks, temperature variations and weather conditions

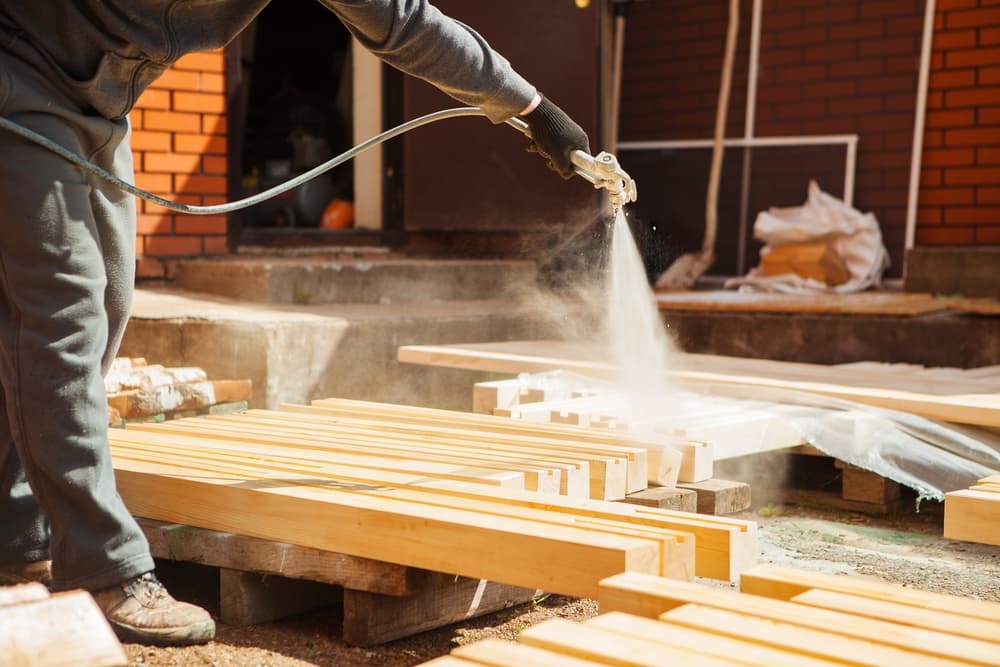

VS FR Wood Coating — White (VSWCO00WT) Prevents the Spread of Fire

VS FR Fabric Coating is a water based clear solution to dip and dry the fabric to make it fire retardant. The necessary original properties of the fabric like its 'looks', 'colours' and 'touch_feel' are not sacrificed at the cost of fire retardancy. The product can be used for other cellulosic absorbent fibres like jute fabric, coir fabric or other similar woven cellulosic water absorbent textile materials. It suits all types of cotton fibre textiles and weaving patterns. The coating converts the fabric into black char, but does not allow it to catch flames. The coating is washable to assist cleaning of the fabric whenever required and can be recoated to make the fabric fire retardant again by dipping in solution and drying.

Special Features:

• The product can be applied in finished stage of the product as well as after installation and commissioning at site. The material is compatible with wood and plywood surfaces having less than 20% moisture contents and no leach outs. Approximately, 1-2 coats of 100 to 150 microns of FR Wood Coating can provide fire resistance of upto 30 minutes to the Plywood or wooden surface.
• It is meant for internal use and should be protected with top coat if expected to be exposed to harsh external conditions like water logging, direct sunlight, etc.
• The coating performs to protect the Wood/ Plywood surface against fire as per IS 5509 and Flame penetration (12 mm thick ply) and for 20 minutes for Rate of Burning (30% to 70%).

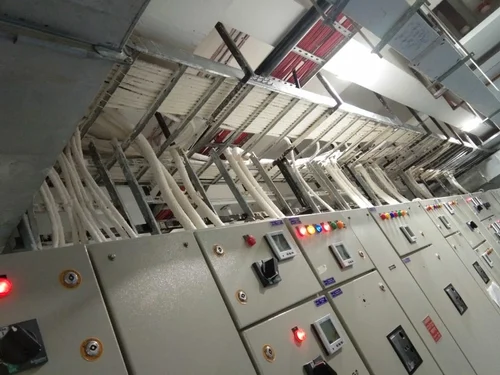

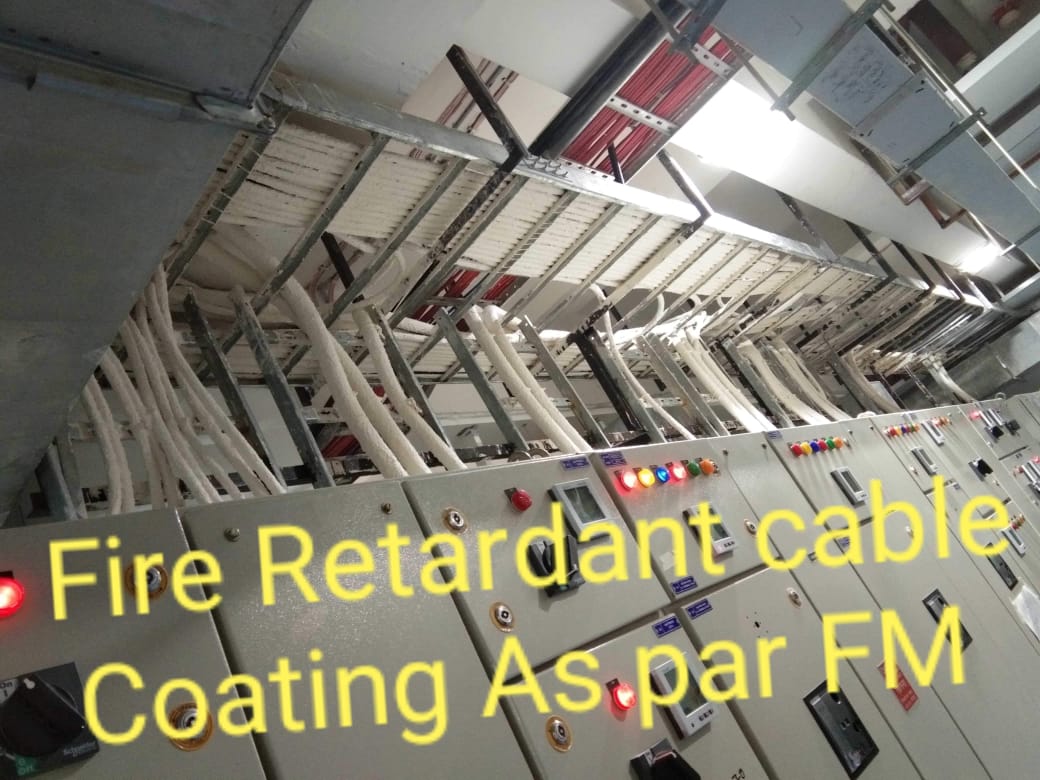

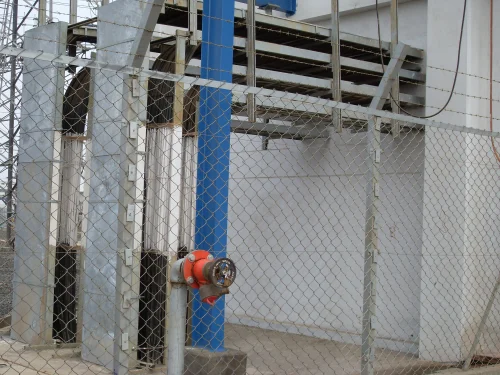

Fire Retardant Cable Coating

We are a leading Manufacturer of fire retardant cable coating, fire retardant steel structure coating and powder coated cable trays from Ahmedabad, India.

Fire Retardant Cable Coating is a specialized protective treatment applied to electrical cables to enhance their fire resistance and reduce the risk of fire propagation. It is designed to prevent cables from igniting easily and to slow down the spread of flames in case of a fire, thereby protecting critical electrical systems and ensuring safety.

Key Features:

Flame Retardancy: Reduces the likelihood of ignition and controls flame spread.
• Smoke and Toxic Gas Control: Minimizes smoke production and toxic emissions during a fire.
• Durability: Resistant to heat, moisture, abrasion, and environmental wear, ensuring long-lasting protection.
• Compliance: Meets international and national fire safety standards for electrical installations.

Applications:

Applications:
Fire Retardant Cable Coating is widely used in commercial buildings, industrial facilities, data centers, power plants, hospitals, and public infrastructure, providing enhanced fire safety for electrical wiring and maintaining operational integrity during emergencies.
