Fire Rated Doors & Partitions

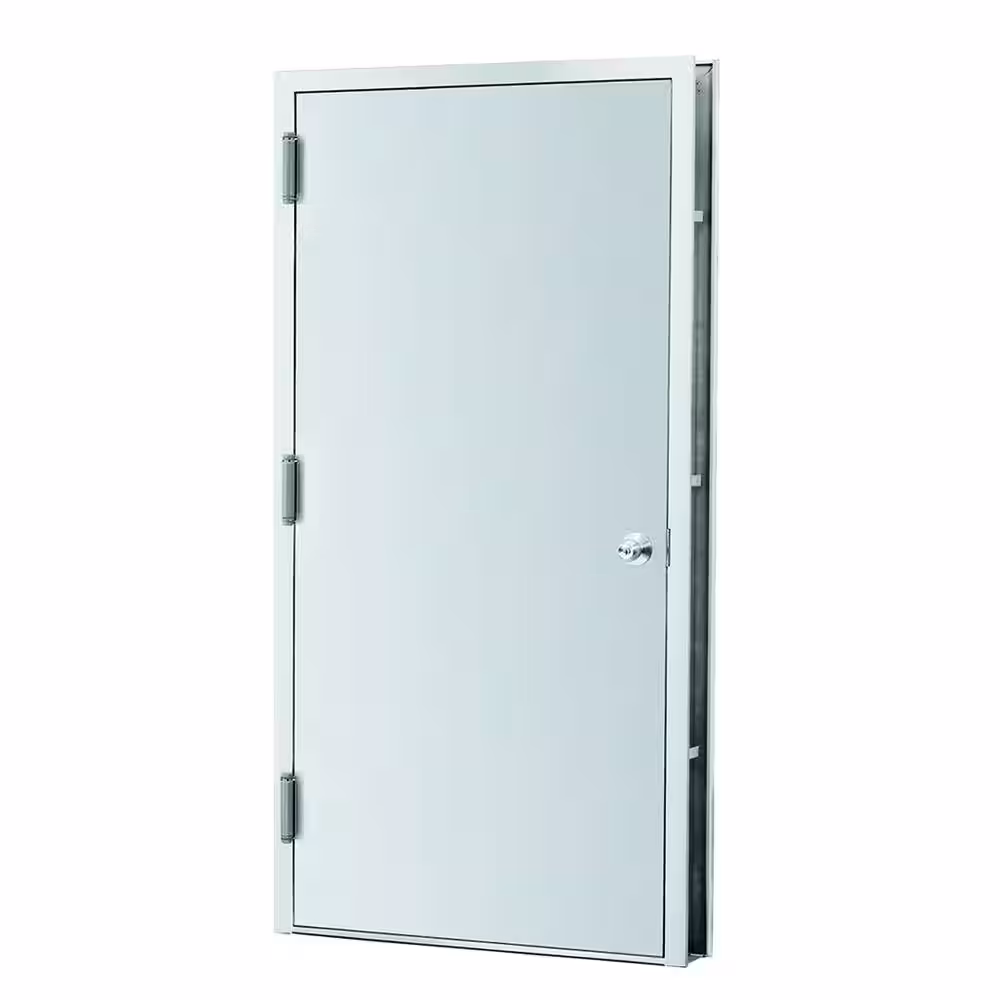

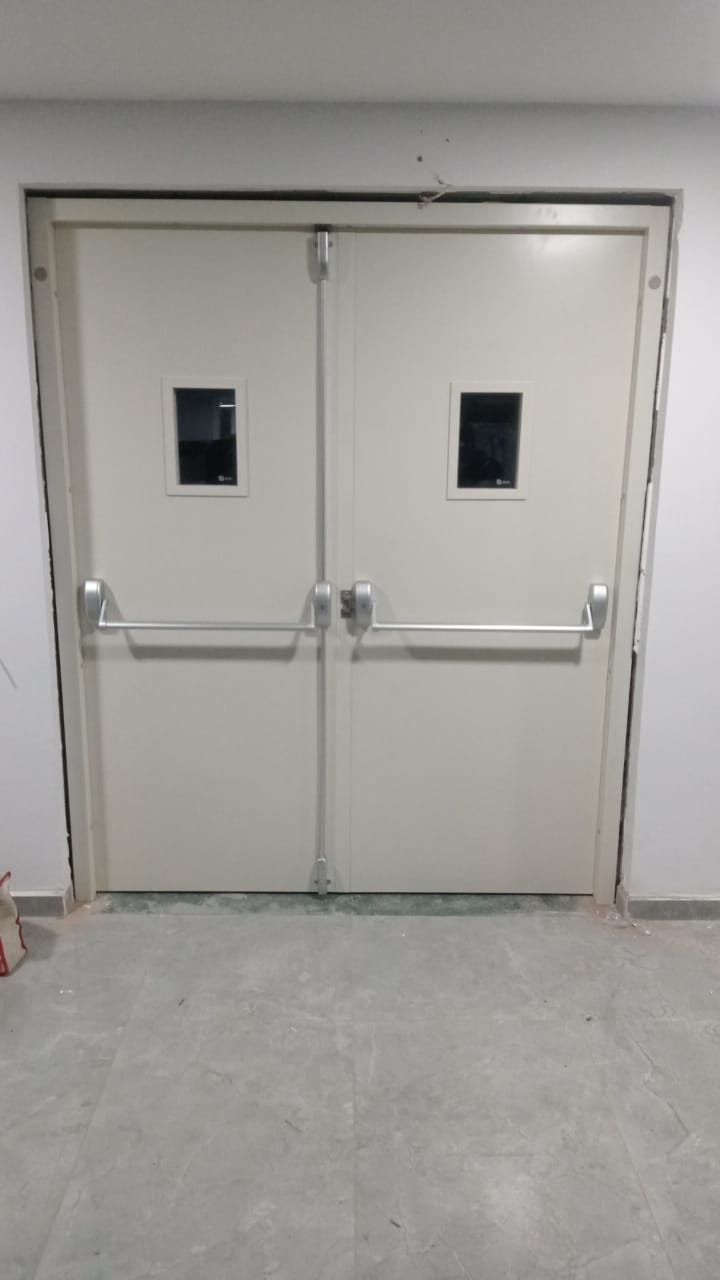

VS Steel Fire Doors (VSPS120PC) Prevents the Spread of Fire

In accordance with International & National Fire Codes, all high-rise (commercial & residential) and industrial building structures are designed & constructed to create fire compartments of specified fire rating (in areas such as escape routes, lobbies, refuge areas, electrical rooms, etc.). In the event of a fire, it confined within a compartment to allow safe passage of people and limit the damage to property. The access doors of these compartments are fire resistant doors. The complete fire door assembly comprises of a fire door frame, and shutter made from pressed steel sheet, with internal structure and infills to achieve the desired fire rating. The product is finished, powder coating as per customer requirements. The product is tested as per BS 476 Part 22 / IS 3614 part Il for its fire resistance.

APPLICATIONS

Hotels, malls, multiplexes, residential & commercial buildings, hospitals, Metro rail stations, industrial units, IT establishments, refineries, and power plants.

FEATURES:

• Available in standard as well customized sizes Available in single as
• double leaf configurations Sleek, fully flushand sturdy design with good aesthetics No
• visible welds on face. Available in coloshades as per customer's requirement
• Prefabricated and ready to install at site
• Provision of hardware as per customer'srequirement Available with fire rated
• Vision panel glass as per customer
• requirement Premium quality stainlesssteel hardware items also available
• Available with smoke seals & thresholdsas per requirement

TECHNICAL DАТА:

• Fire Rating - up to120 minutes
• Frame/Shutter Material - Galvanized Steel
• Door Finish - Powder Coating

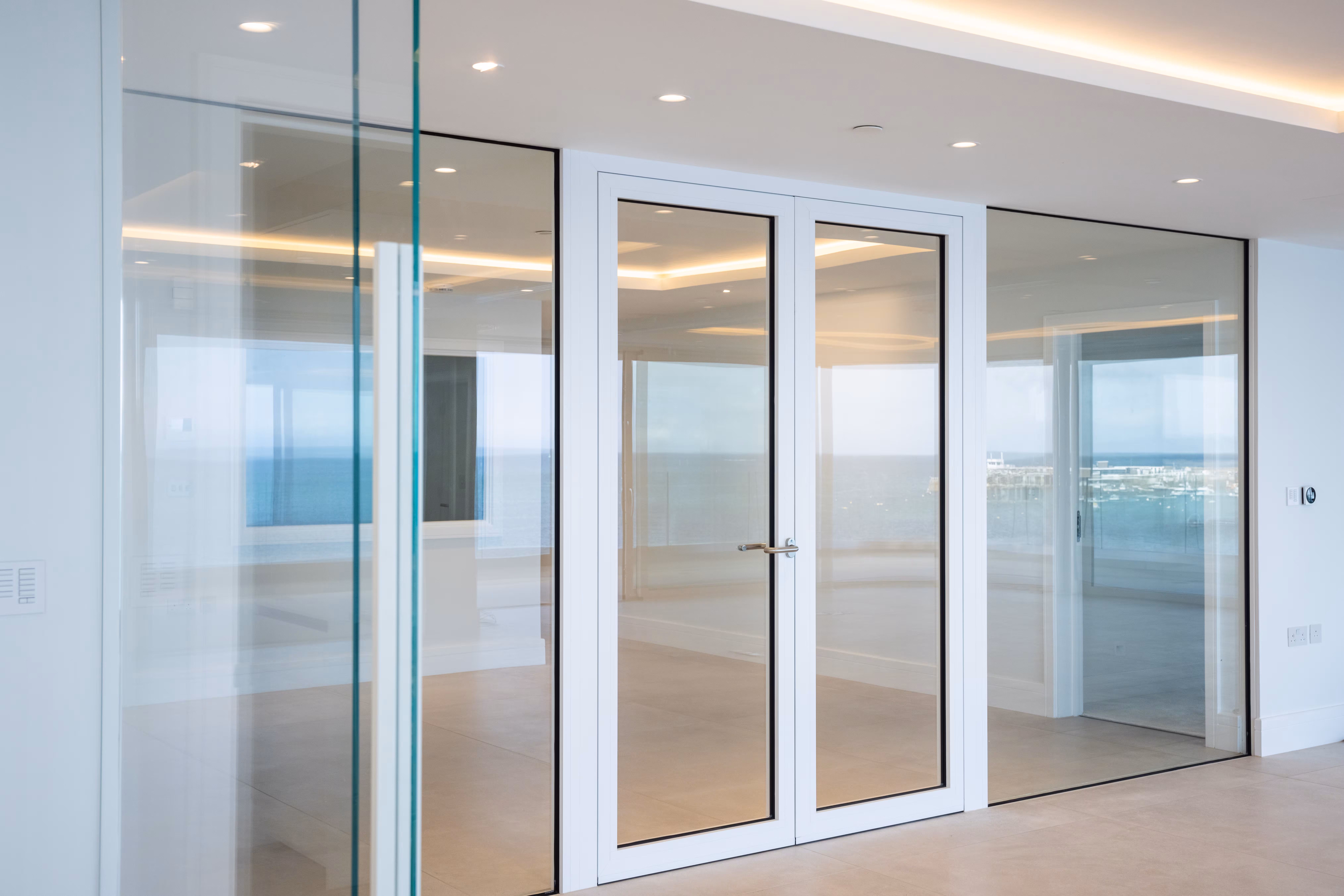

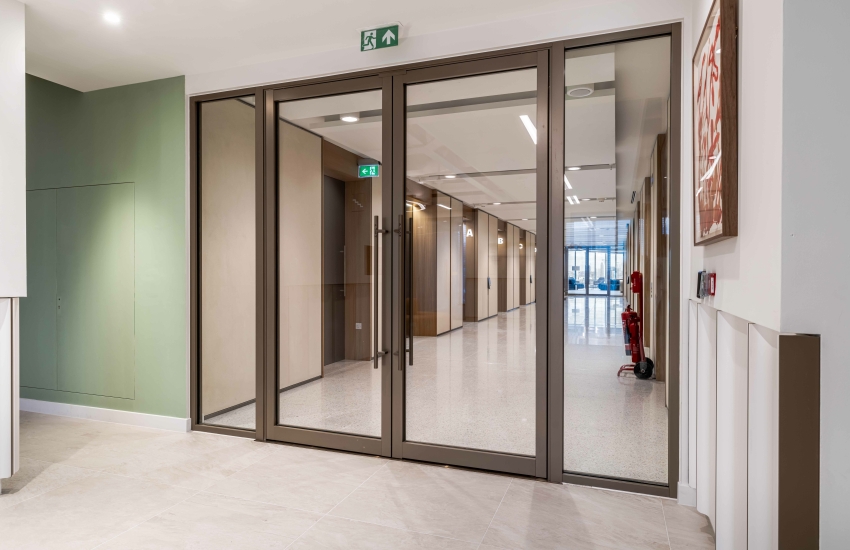

VS Fire Rated Glazed Partitions (VSFP120GP) & VS Fire Rated Glazed Doors (VSFP120GD)

The compartmentalization of fire in highrise, commercial & industrial buildings is essential to keep smoke, heat & fire confined within a compartment. The partitions and access doors of some of the compartments require visibility during normal conditions due to operational needs. Ace Glazed Fire Partitions used in conjunction with fire rated glass provide a solution for this requirement

Properties & Special Features:

• Available in standard as well ascustomized sizes
• Frame work available in color shades as per customer requirements
• Sleek and sturdy frame work using galvanized steel
• Clear transparent view with light transmission up to 92%
• Fire resistance up to 120 minutes

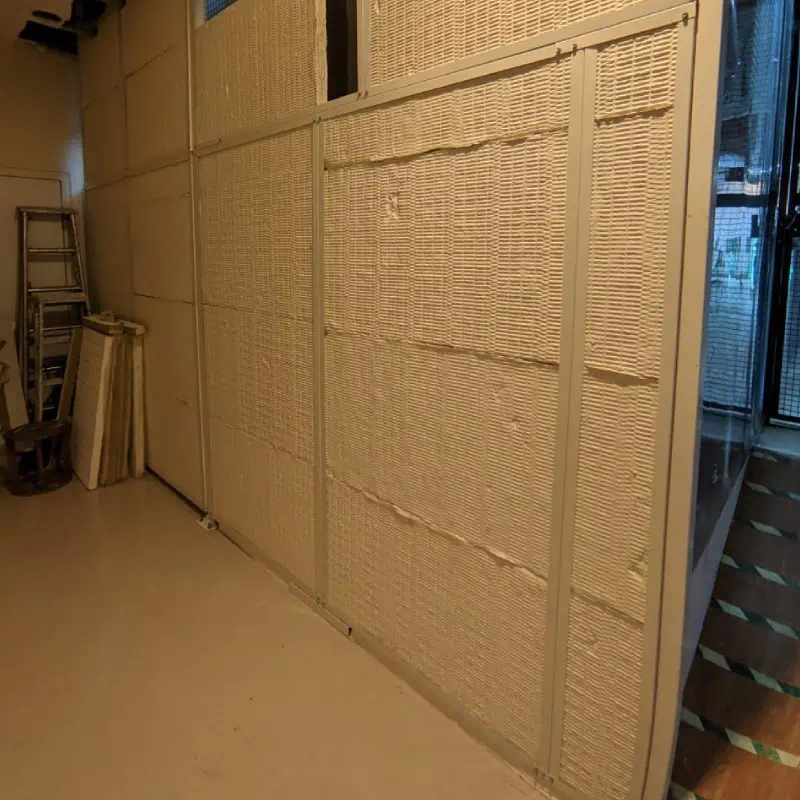

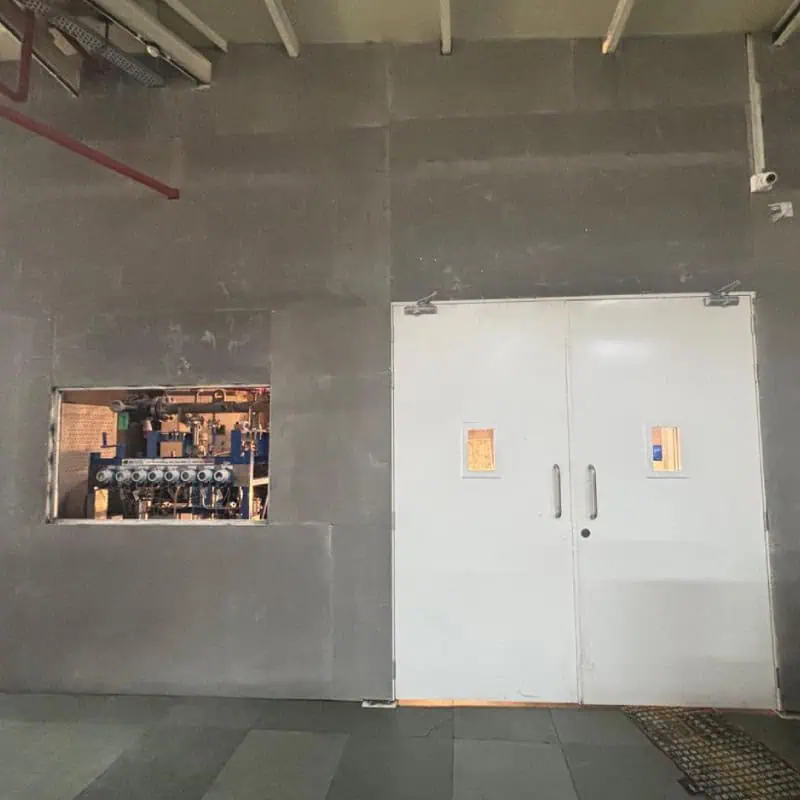

VS Fire Rated Partition Walls (VSFP120PW) PreventstheSpread of Fire

VS Fire Rated Partition Wall is a system using Panel Seals with pressed steel channel encasing, reinforced by suitable structural steel support sections. The support sections can be standard steel angles, channels or beams depending upon the span of unsupported width and height of the fire rated partition wall required to be installed at a project site. Ace Panel Seals are Mineral Wool Boards coated on both the faces with Ace Mastik Coating to a nominal thickness of 1.60 mm. The support sections and steel encasing channels are also coated with Ace Mastik Coating. VS Fire Rated Partitions prevent the spread of fire, smoke and toxic gases across the partition in the event of fire, when installed in accordance with the installation guidelines. Thepanel seal is tested as per ASTM E 814.

Special Features

• Halogen Free
• Standard fire rating of the system in up to 2 hours. Special arrangement and system designs can be offered for systems upto 4 hours fire rating
• Added advantage of good acoustic insulation/ sound attenuation
• Flexible to moderate shocks, temperature variations and weather conditions
• Not affected by aging
• Resistant to rodents, vermin & termite

Specifications

PROPERTY	PRESENT VALUE
Application Temperature	5 °C to 50 °С
Density k	1.25 to 1.40 gms/cm³
pH	6 to 8
Appearance	Off White, Thick Liquid
Odor	Odorless
Resistance to Moisture & Humidity	Good
Toxicity	Non Toxic
