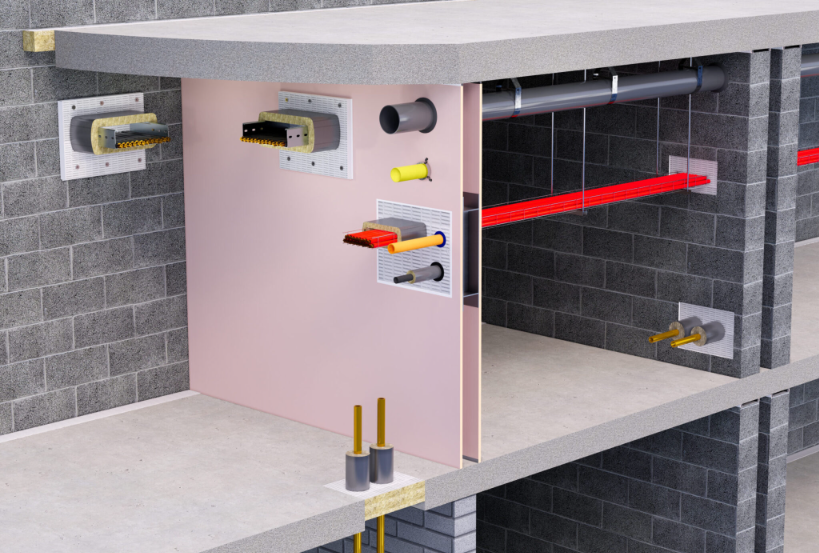

Our fire penetration sealing solutions maintain compartment integrity and provide certified fire resistance performance for cables, pipes, and building service openings in industrial and commercial structures.
AFS Mortar Seal is a mixture of cement and other fire-retardant chemicals capable of controlled swelling. Ace Mortar Seal is a light-weight, low density product which expands, ensuring a tight seal against the passage of fire, toxic gases and smoke. This type of fire stop can be adopted for openings in well as cut-outs in floors, providing a fire rating of up to 4 hourse.
| PROPERTY | PRESENT VALUE |
|---|---|
| Bulk Density | Approx 700 gm/Litre (+/-50) |
| Storage Temperature | 5 c to 50 c in dry condition |
| Ph Value | Approx. 9 to 12.5 |
| Packaging | 20kg & 30 kg |
| Toxicity | Non-toxic |
| Mix Ratio | 1:0.64 (Mortar: water) |
| Application Temperature | Room Temperature |
| Color | Grey |
| Shelf Life | 18 months, in original packed condition |

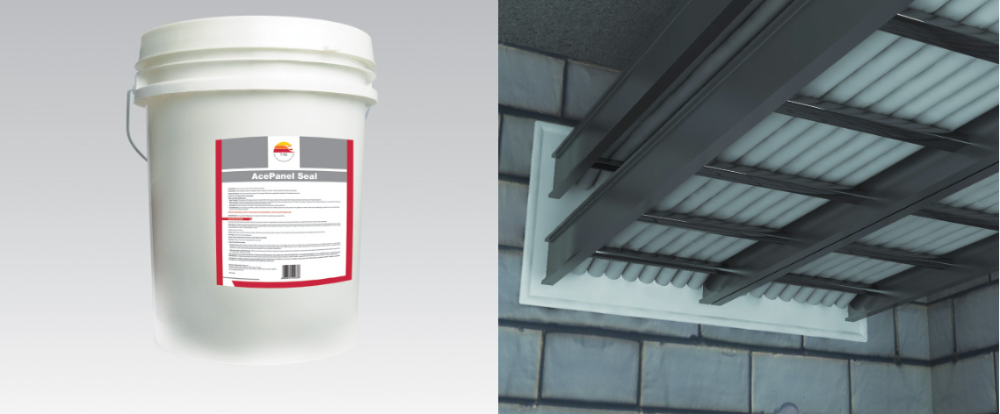

Ace Panel Seal is a fire sealing system which consists of Mineral wool boards, with the exposed surface of boards are coated with fire-retardant coating which provided a fire rating of 2 to 4 hours. It provides a tight seal against the spread of fire, toxic gases and smoke. The complete system is Factory Mutual, USA approved and tested as per ASTME-814 Standards.
| PROPERTY | PRESENT VALUE |
|---|---|
| Density of Ace Mastik Coating | 1.25 to 1.40 gms/cm |
| Storage Temperature | 5°C to 50°C in dry condition |
| Thickness of Coating | 1.6 mm Minimum |
| Curing Rate | 4 hours |
| Shelf Life | 18 Months, In Original Packed Condition |
| Application Temperature | Room Temp. |

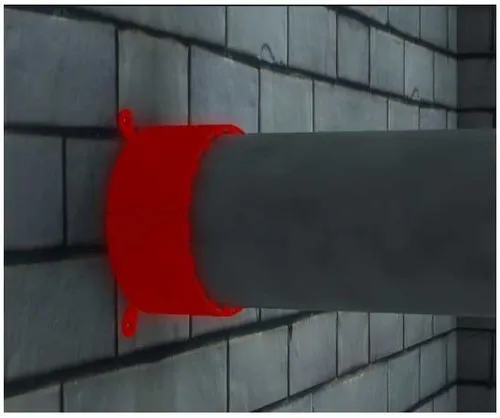

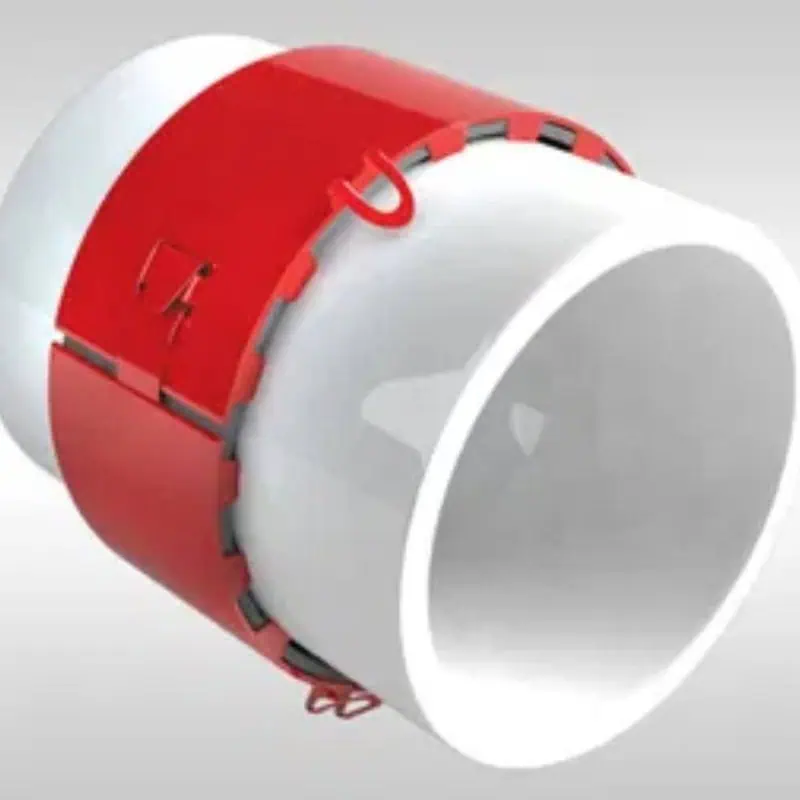

VS Pipe Collars are made of non-corrosive powder coated steel and lined with VS Plastic Pipe Wraps that are used to cover plastic pipes where they penetrate through a wall or floor. In the event of are or exposure to high heat, plastic pipes can melt quickly and permit are, smoke and fumes to pass through the pipes and travel beyond the barrier. VS Pipe Collars provide are penetration seal in plastic pipes penetrating through walls (including gypsum stud walls) and coors. In a re, the intumescent wraps expand multiple times and cause the plastic pipes to collapse internally (inside the collar) and close the through passage in order to create a tight seal and prevent re, smoke and fumes from travelling further.
| PROPERTY | PRESENT VALUE |
|---|---|
| Intumescent Activation Temperature | Approx. 180°C |
| Recommended for Penetration Pipe Materials | uPVC, uPVC Composite, PE, PP |
| Intumescent Expansion Pressure | 193.5 kPa mean peak pressure for 1.82 mm thick material in 8.27mm |
| Intumescent Expansion Volume Ratio | 11.45 mean ratio at 2.84 kP a |
| Service Temperature | -15°C to +75°C |
VS Plastic Pipe Wrap is a dry, fiexible intumescent film wrap used around plastic service pipes penetrating through openings in a wall and/or floor in a building structure. In the event of a fire, the wrap expands multiple times to seal the plastic pipe opening as well as the opening between the pipe and the wall/floor structure. VS Wraps prevent the passage of fiames & hot gases and restricts the temperature rise on the non-fire side of a wallor floor. The wraps are 1.8mm thick, water-resistant and made of intumescent material that is wrapped in a ploythene sleeve with an adhesive tab. VS Wraps are available in 15 standard sizes ranging from 43mm - 160 mm plastic pipes (outer diameter). VS Wraps are UL tested as per ETA 14/0298 & CE 0843 and have a re ratingof 1 hour – 4 hours. Refer to theTechnical Data Sheet for details.
VS Plastic Pipe Wrap is a system that combines intumescent wraps with Ace Mortar Seal to provide a tightseal in through plastic pipe openings and openings between the pipes and the wall/floor structure to prevent the passage of fiames & smoke to the non-fire side.
| PROPERTY | PRESENT VALUE |
|---|---|
| Intumescent Activation Temperature | Approx. 160°C |
| Pipe Opening Sizes | From 43mm - 160mm (outer pipe diameter) |
| From 43mm - 160mm (outer pipe diameter) | uPVC, PE, ABS, SAN+PVC, PE, Insulated Mild Steel, Stainless Steel |
| Intumescent Expansion Pressure | 146.8 kPa mean peak pressure for 1.85mm thick material in 8.27mm |
| Intumescent Expansion Volume Ratio | 10.75 mean ratio at 2.84 kPa |
| Service Temperature | - 15°C to +75°C |

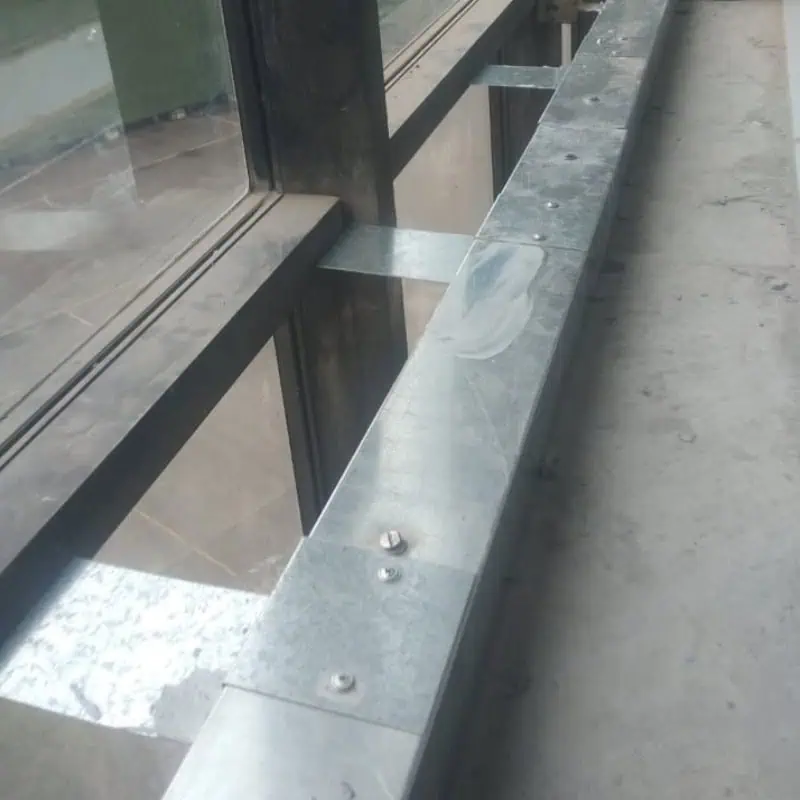

In recent times glass facades have become most preferred architectural and aesthetically appealing building facelifts. A typical through gap is left between the glass facade and the floor ceilings. Ace Panel Seals can effectively seal theses gaps and prevent passage of smoke and fire through these gaps in case of fire. The system consists of mineral wool boards stuffed in the gaps between the façade and the ceiling with the exposed surfaces of the mineral wool boards being coated with Ace Mastik Coating. Any annular gaps between the Panel Seal system & the structure is sealed with Ace Mastik Sealant. Ace Panel Seal is tested as per ASTM E814 & UL 1479 for up to 4 hours fire rating.
| PROPERTY ACE MASTIK COATING | PRESENT VALUE |
|---|---|
| PRESENT VALUE | 5 °C to 50 °C |
| Density | 3 1.25 to 1.40 gms/cm |
| pH | 6 to 8 |
| Appearance | Off White, Thick Liquid |
| Odor | Odorless |
| Flash Point | None |
| Resistance to Moisture &Humidity | Good |
| Toxicity | Non Toxic |
